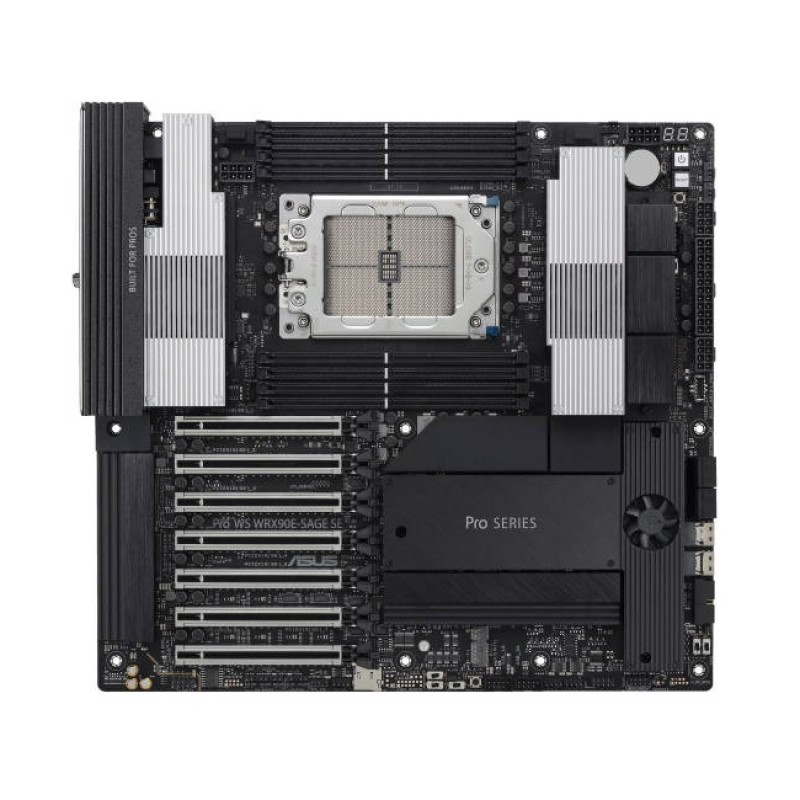

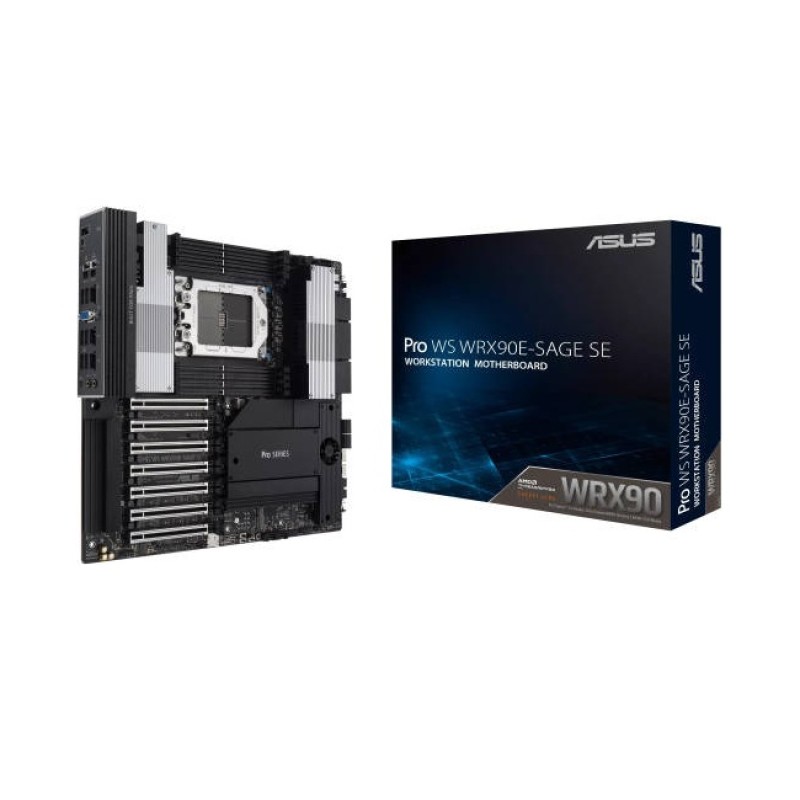

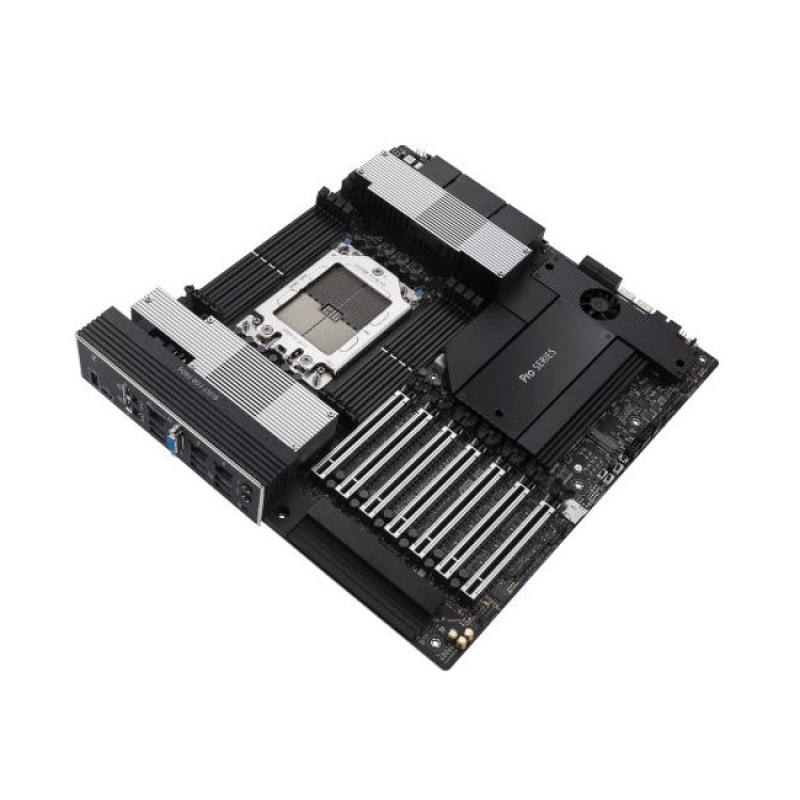

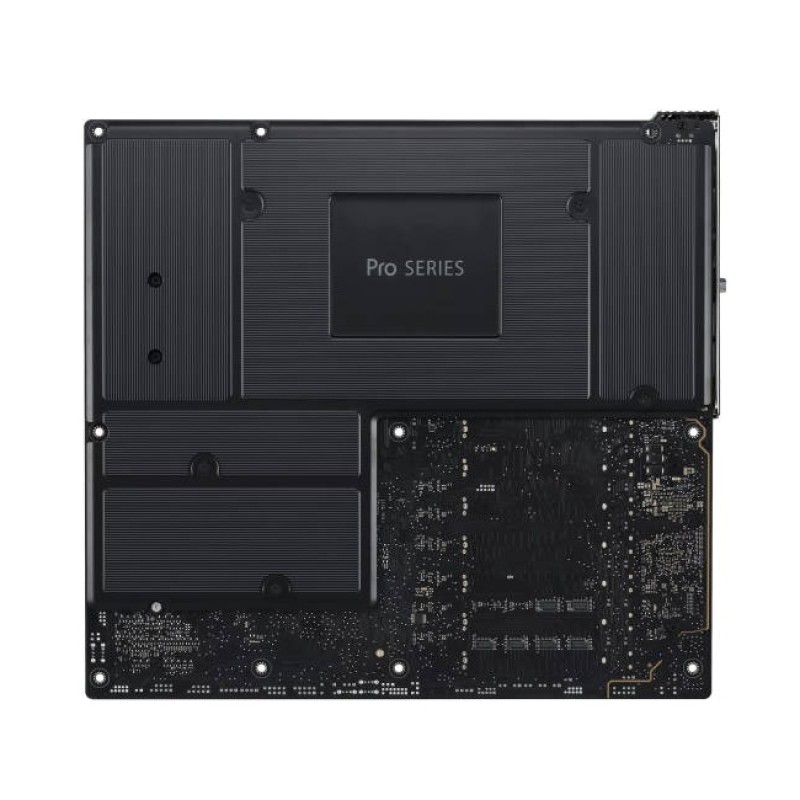

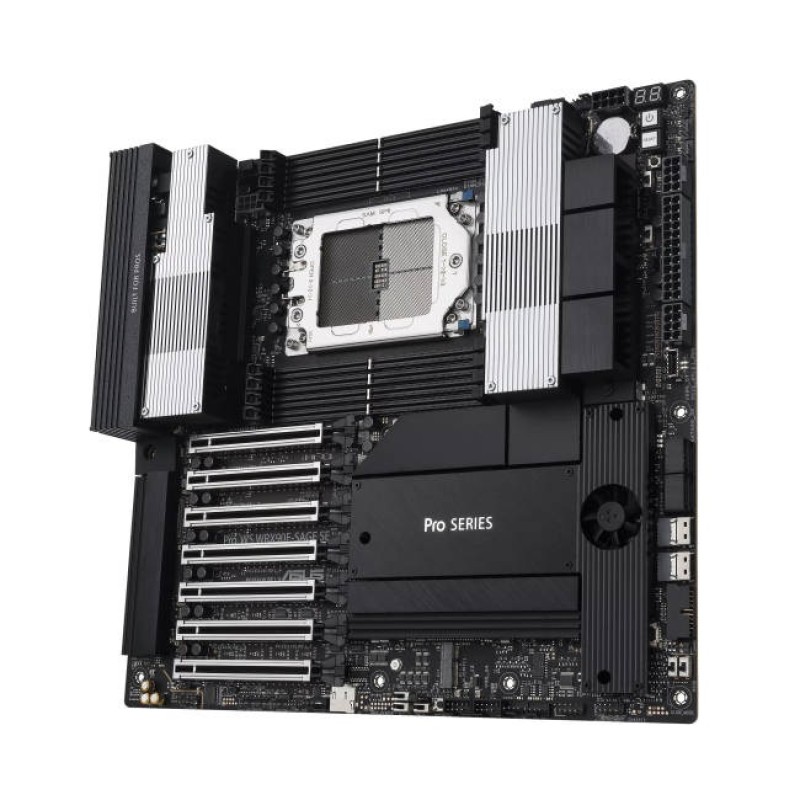

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard, AMD WRX90 Chipset, 8x DIMM DDR5 / 2048GB Max Memory, 7x PCIe 5.0 x16 Slots, 4x M.2 Slots - 90MB1FW0-M0EAY0
-
- Brand Store: Asus
- Model: ASUS PRO WS WRX90E-SAGE SE-AE
- Availability: In Stock
- Part No: 90MB1FW0-M0EAY0
About this item
AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Asus ASUS PRO WS WRX90E-SAGE SE-AE
| Buy Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard, AMD WRX90 Chipset, 8x DIMM DDR5 / 2048GB Max Memory, 7x PCIe 5.0 x16 Slots, 4x M.2 Slots - 90MB1FW0-M0EAY0 | |
|---|---|
| CPU | AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series* |
| Chipset | AMD WRX90 Chipset |
| Memory | 8 x DIMM slots, DDR5, ECC Registered, 4 Channel Architecture |
| Expansion Slots | 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) |
| Storage | AMD CPU: - 4 x M.2 slots (PCIe 5.0 x4) - 2 x SlimSAS ports - 4 x SATA 6Gb/s ports Chipset: - 2 x SlimSAS (PCIe 4.0 x4 NVMe) - 4 x SATA 6Gb/s ports |
| Ethernet | - 1 x Realtek 1Gb (Management LAN) - 1 x Intel® dual 10Gb - ASUS LANGuard |
| USB (Rear) | - 2 x USB4® (40Gbps, Type-C) - 6 x USB 10Gbps (Type-A) - 1 x USB 2.0 (2 x Type-A) |
| USB (Front) | - 1 x USB 20Gbps Type-C - 1 x USB 5Gbps header (2 ports) - 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P HD Audio CODEC - 120 dB SNR stereo playback - 113 dB SNR recording - Supports 32-Bit/192 kHz playback - Jack-detection, Multi-streaming, De-pop, etc. |
| Back Panel I/O | - 2 x USB4® Type-C - 6 x USB 10Gbps Type-A - 1 x USB 2.0 - 1 x VGA, 2 x mini DisplayPort IN - 2 x 10Gb LAN, 1 x 1Gb LAN - 2 x Audio jacks - BIOS FlashBack™, Clear CMOS |
| Cooling Headers | - 1 x CPU Fan, 1 x CPU OPT Fan - 1 x W_PUMP+, 5 x Chassis Fan - 2 x VRM Fan, 1 x M.2 Fan |
| Power Connectors | - 1 x 24-pin Main - 2 x 8-pin +12V - 2 x 8-pin PCIe to CPU - 2 x 8-pin PCIe |
| Special Features | - ASUS 5X Protection III, Q-Design, EZ DIY - M.2 heatsinks, VRM cooling, SafeSlot/DIMM - Pre-mounted I/O shield, ProCool II |
| BMC Related | - BMC switch, IPMI support, microSD socket - LAN LEDs, VGA switch, Message LED, PSU_SMB, etc. |
| Software | - Armoury Crate, Fan Xpert 4, ASUS CPU-Z - Adobe CC trial, Norton 360 (60 Days), WinRAR (40 Days) |
| OS Support | Windows® 11, Windows® 10 64-bit |
| Form Factor | EEB (12 x 13 in / 30.5 x 33 cm) |
| General | |
| Manufacturer | Asus |
|---|---|
| Model | ASUS PRO WS WRX90E-SAGE SE-AE |
| Manufacturer Part No | 90MB1FW0-M0EAY0 |
| Compatible Country | Middle East, Africa, Iran, Dubai |
| Country of Origin | Taiwan |
| Price | AED 5,076 |
