General
Manufacturer UBIQUITI
Model Ubiquiti AF-24
Manufacturer Part No AF-24
Price AED 5,250

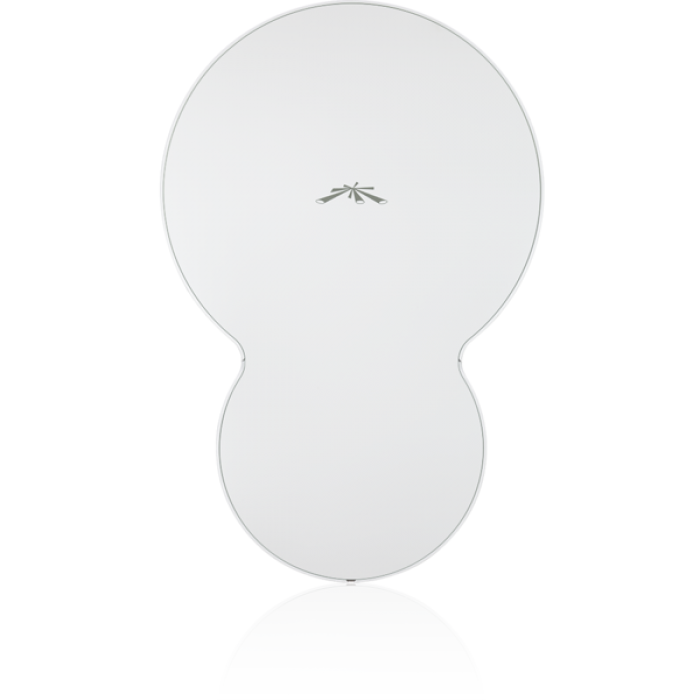

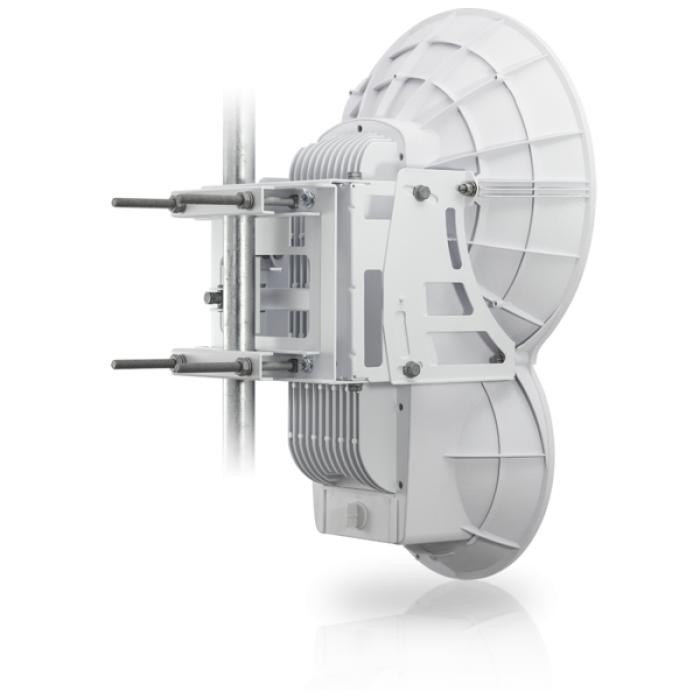

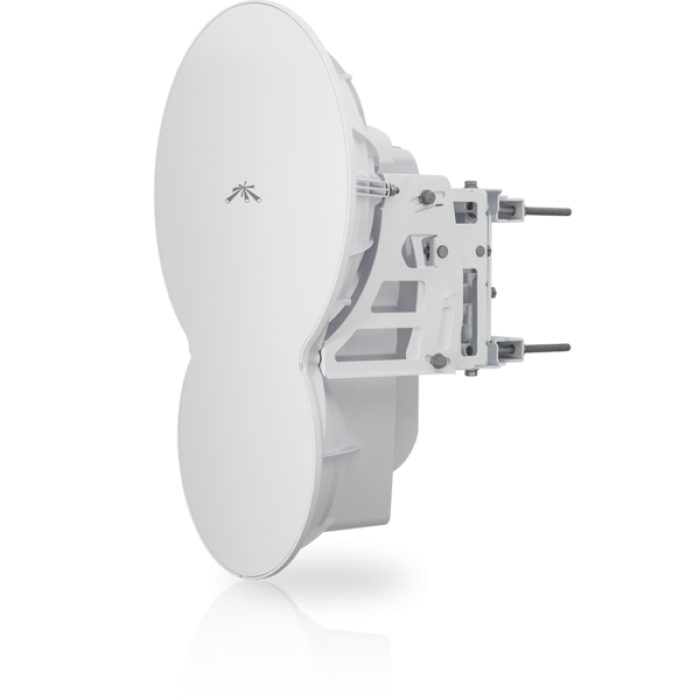

Ubiquiti AF-24 airFiber 24 GHz Bridge


Revolutionary Wireless Technology
Introducing airFiber, a truly revolutionary 24 GHz Point-to-Point radio from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers revolutionary performance of 1.4+ Gbps, aggregate throughput and 13+ km in range. airFiber ushers in a new era in price disruptive, carrier-class backhaul technology.

Supports 24 GHz frequencies
  • AED 5,250

  • Inclusive of VAT
  • or 4 payments of AED 1,312.50 No interest, no fees. Learn more
  •   *Get it in 1-3 hours   terrabyt-express

Available Options

Are you wholesaler or reseller?

QuantityPrice
10+AED 100
25+AED 100
50+AED 100
  • Fulfilled by Terrabyt
  •  Condition: New
  •    Deliver To UAE
    Free Delivery Tomorrow, May 03
    If you order within 3 Hours, 10 Minutes

Ubiquiti AF-24 airFiber 24 GHz Bridge

airFiber
Operating Frequency24.05 – 24.25 GHz
Dimensions593 x 768 x 370 mm
Weight17.3 kg (Mount Included)
Maximum Power Consumption50 W
Power Supply50V, 1.2A PoE GigE Adapter (Included)
Power MethodPassive Power over Ethernet (42-58VDC)
CertificationsCE, FCC, IC
MountingPole Mount Kit (Included)
Wind Loading170 lbf @ 125 mph
Wind Survivability125 mph
Operating Temperature-40 to 55° C (-40 to 131° F)
LEDs(8) Status LEDs:
Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port(1) 10/100/1000 Ethernet Port
Configuration Port(1) 10/100 Ethernet Port
Auxiliary Port(1) RJ-12, Alignment Tone Port
System
Maximum Throughput2 Gbps
Maximum Range20+ km
Packets per Second> 1 Million
Encryption128-Bit AES
Forward Error CorrectionNo
Cyclic PrefixNo
Uplink/Downlink Ratio50% Fixed
Radio Frequency
GPSGPS Clock Synchronization
EIRP~33 dBm (FCC/IC), ~20 dBm (CE)
Frequency Accuracy±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization
Channel Bandwidth100 MHz
Operating Channels24.1 GHz, 24.2 GHz
Modulation256QAM
64QAM
16QAM
QPSK MIMO
QPSK SISO
¼x QPSK SISO
Integrated Split Antenna
TX Gain33 dBi
RX Gain40 dBi
Beamwidth< 3.5°
Front-to-Back Ratio70 dB
PolarityDual-Slant Polarization
Cross-Polarity Isolation> 28 dB




Tags: Ubiquiti AF-24 Price Dubai Ubiquiti AF-24 Supplier Dubai Ubiquiti AF-24 Sale Dubai Ubiquiti AF-24 Features Dubai UBIQUITI IT Products Dubai UBIQUITI IT Supplies Dubai UBIQUITI IT Store Dubai UBIQUITI Distributor Dubai UBIQUITI Shop Dubai UBIQUITI Store Dubai
