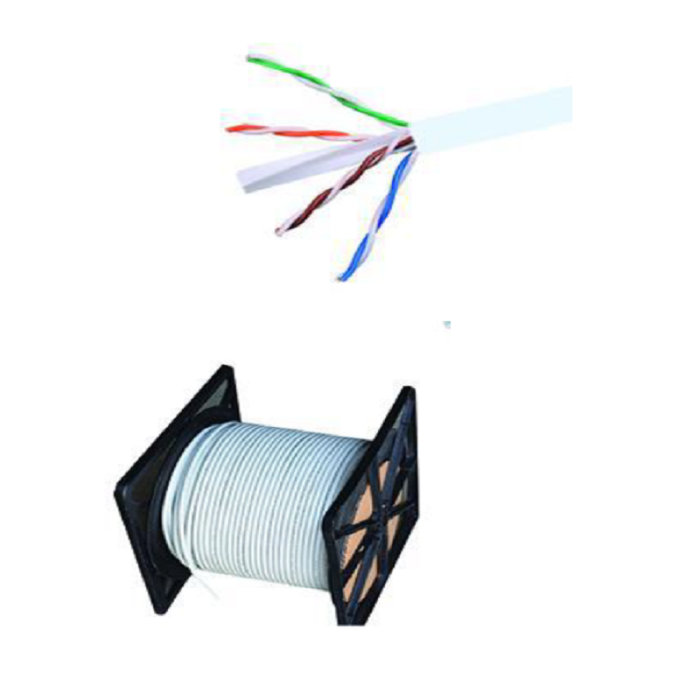

Avalon ANC6UPGY24-305MT CAT.6 24 AWG UTP Cable - 305 Meter - Grey
-
- Brand Store: AVALON
- Model: Avalon ANC6UPGY24-305MT
- Availability: In Stock
- Part No: ANC6UPGY24-305MT
About this item
Avalon 24 AWG UTP CAT.6 cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA568C.2 and IEC 60603-7-4 standards. CAT6 cables reduce crosstalk and system noise. The superior insulation around the 24 AWG copper wires attribute to the increased performance. They can transmit data at 1000 Mbps (~1 Gigabit per second) with a frequency of 250 MHz and suitable for 10BASE-T, 100BASE-TX Fast Ethernet and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet).
AVALON Avalon ANC6UPGY24-305MT
Specification
• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Solid Bare Copper
• Color Code: Gray
• Conductor Diameter : 0.520mm Nominal, 24 AWG
• Insulation Diameter: 0.940mm Nominal,
Insulation Material: HD-PE
• Jacket Material: PVC UL94V-0
• Cable Diameter: 5.7mm
• PE Central Cross separator
Technical Details
• Mutual Capacitance: 5.6nF/100m nominal
• Characteristic Impedance: 1000±15%
• Nominal Velocity of Propagation: 69%
• Characteristic Impedance: 100+150
• Conductor Resistance: < 9.380/100m
• Mutual Capacitance: < 5.6nF/100m
• Resistance Unbalance: 5% Max
• Capacitance Unbalance: 330pF/100m
• Delay Skew: < 45nS
• Bending Radius: < 4 X Cable Diameter at –20°C ± 1°C
• Pulling Force: 11.5Kg
• Temperature Range: -20° to +70°C
Approvals/Certifications
• Verified compliant with TIA/EIA-568C.2 standards by ETL
• CUL listed
• RoHs
| General | |
| Manufacturer | AVALON |
|---|---|
| Model | Avalon ANC6UPGY24-305MT |
| Manufacturer Part No | ANC6UPGY24-305MT |
| Price | AED 422 |
