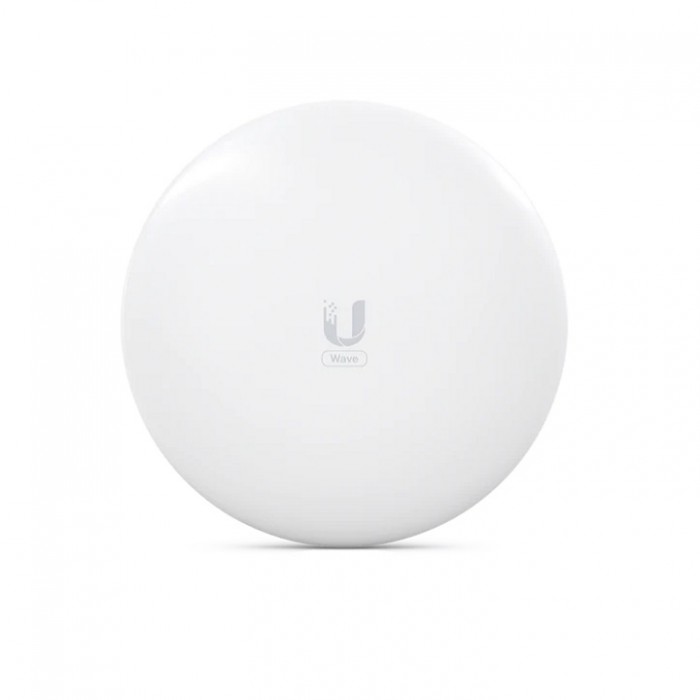

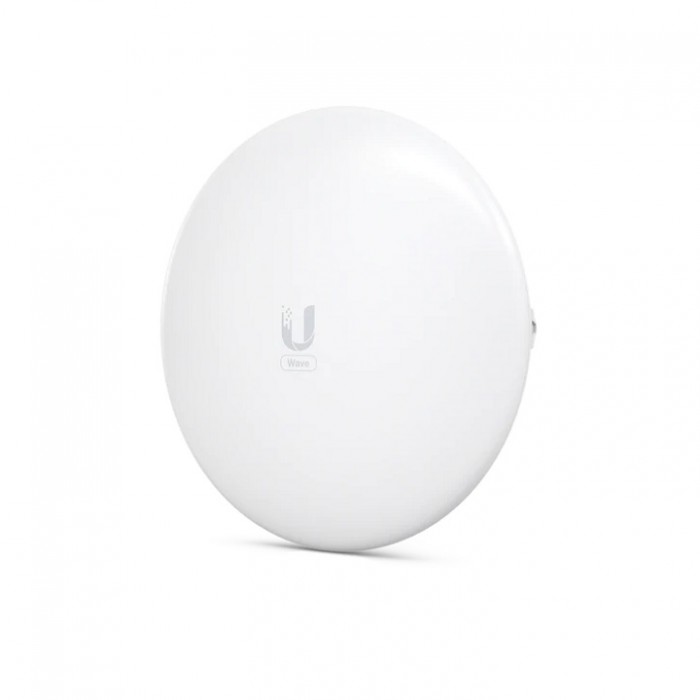

Ubiquiti Wave-Nano UISP Wave Nano
-
- Brand Store: UBIQUITI
- Model: Ubiquiti Wave-Nano
- Availability: In Stock
- Part No: Wave-Nano
About this item
60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Features:
- 5 GHz backup radio
- Link range: up to 5 km
- Router mode support
- Integrated GPS antenna
- Link planning support via ISP Design Center
UBIQUITI Ubiquiti Wave-Nano
Mechanical
Dimensions @256.5 x 113.5 mm (@10.1 x 4.5")
Weight Without mount: 932 g (2.1 lb)
With mount: 1.2 kg (2.6 lb)
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount materials Aluminum alloy, UV stabilized plastic
Pole mount diameter 25 to 63.5 mm (1 to 2.5") on pipe outer diameter
Wind loading 127 N at 200 km/h (28.6 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Dual ARM® Cortex®-A53 cores at 1 GHz
Memory DDR3L 512 MB
Networking interface (1) GbE RJ45 port
Max. power consumption 18W
Power method 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply 48V DC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
Button Factory reset
LEDs Power, Ethernet, GPS, link
Operating temperature -40 to 60° C (-40 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
GTIN 810010078988
| General | |
| Manufacturer | UBIQUITI |
|---|---|
| Model | Ubiquiti Wave-Nano |
| Manufacturer Part No | Wave-Nano |
| UPC | 251780083 |
| EAN Code | 810010078988 |
| Compatible Country | Middle East, Africa, Iran, Dubai |
| Country of Origin | California |
| Price | AED 1,260 |
