UNV-NSW2010-16T2GC
General
Manufacturer UNV
Model UNV-NSW2010-16T2GC
Manufacturer Part No NSW2010-16T2GC

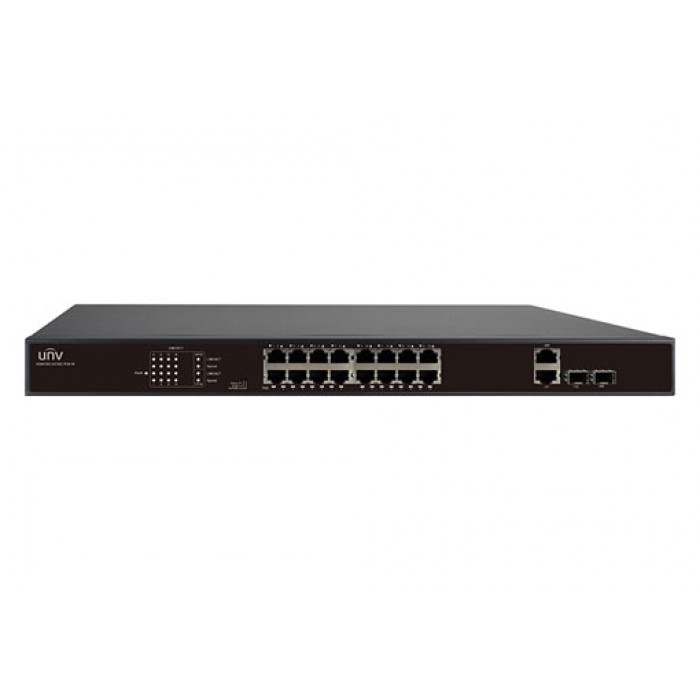

UNV SWITCH NSW2010-16T2GC-POE-IN

About this item

#1: Multiple working modes to address your business needs: Normal, Secure and Surveillance
#2: Support port traffic control
#3: Support for secure mode, all downlink ports can communicate only with uplink ports
#4: Up to 250m transmission distance on surveillance mode
#5: Support buffer optimization
#6: All metal housing, safe and reliable

UNV UNV-NSW2010-16T2GC

Description

Ports: 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports,RJ45 port, full duplex, MDI/MDI-X adaptive

Ports for long-distance transmission: Ports 1 to 16

Standards: IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az

Switching capacity: 7.2Gbps

Forwarding performance: 5.36Mpps

Forwarding mode: Store-and-forward switching

Packet Buffer: 4Mbit

MAC: 16K

Dimensions (W×D×H): 440mm x 207mm x 45mm(17.3"×8.1"×1.8")

Weight: <4.2kg

Power supply: AC: 100-240V, 50/60Hz

PoE: 802.3at/af

Max. PoE Power: Max capacity: 250W

Max capacity for single port: 30W

Switch Power: 270W

Surge Protection: Common mode ±6KV  Differential mode ±4KV

Electrostatic standard: Common mode ±6KV  Differential mode ±8KV

Cooling Fans: 2

Mean Time Between Failure(MTBF): >50000 hours

Operating temperature: 0°C-40°C (32°F-104°F)

Operating humidity: 10%90% (noncondensing)

Storage humidity: 5%90% (noncondensing)






show more
General
Manufacturer UNV
Model UNV-NSW2010-16T2GC
Manufacturer Part No NSW2010-16T2GC
