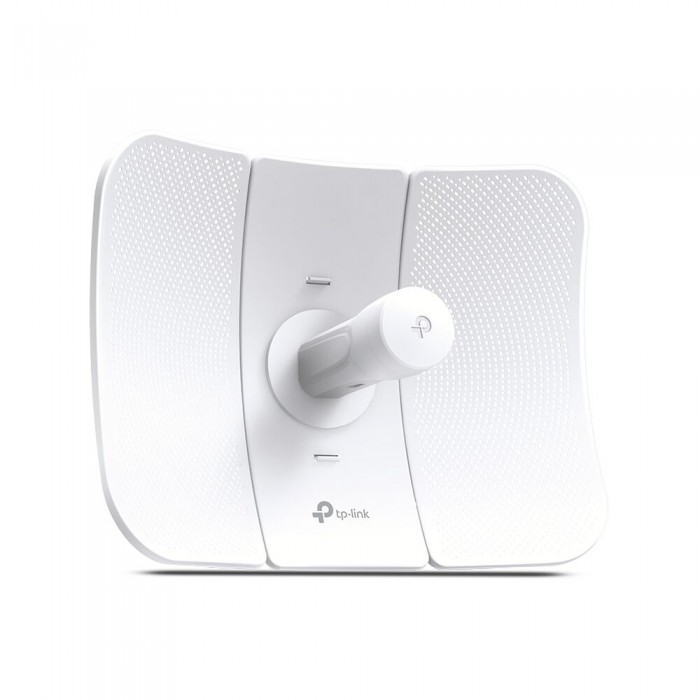

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

Name: TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
Brand: Tp-Link
SKU: CPE710
Price: 241.50 AED
Availability: InStock
Rating: 4 (2 reviews)

Brand: Tp-Link
Model: TP-LINK CPE710
Availability: In Stock

Part No: CPE710
chat with Terrabyt.com

• 802.11ac for up to 867Mbps on 5GHz wireless data rate

• 23dBi high-gain directional 2x2 MIMO, ideal for long-distance application

• Excellent beam directivity, improved latency and noise cancellation

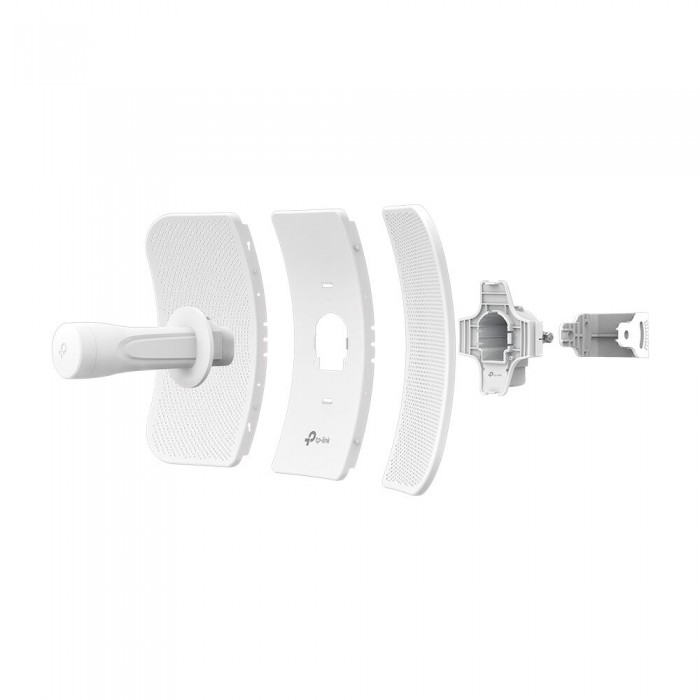

• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds

• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability

• Pharos Control gives administrators a free, centralized management system

• Passive PoE supports to allow flexible deployment and convenient installation

2 reviews / Write a review

AED 242
Inclusive of VAT
or 4 payments of AED 60.50 No interest, no fees. Learn more
Split in 4 interest-free payments of AED 242

Get what you love, split the cost. No fees.

4 PAYMENT
AED 60.50 / month
Interest
0%
Total
AED 242
How it works:

1

Choose at checkout.

2

Enter your information and add your debit or credit card.

3

Split your purchase in 4 monthly payments.

4

We’ll send reminders when your next payment is due.

Continue shopping
Supported payment methods
*Get it in 1-3 hours

Available Options

Select your warranty

1 Year manufacture warranty - Free

2 Year warranty (+AED 22 )

3 Year warranty (+AED 44 )

Qty

Are you wholesaler or reseller?

Quantity	Price
10+	AED 100
25+	AED 100
50+	AED 100

Fulfilled by Terrabyt
Condition: New
Deliver To UAE
Delivered by Today, Jul 27

If you order within 6 Hours, 22 Minutes

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE

Description

HARDWARE FEATURES

Processor: Qualcomm 750MHz CPU, MIPS 74Kc

Memory: 128 MB DDR2 RAM, 16 MB Flash

Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button

Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins), Voltage range: 16-27V DC

Dimensions ( W x D x H ): 14.4 x 11.0 x 8.1 in. (366 x 280 x 207 mm)

Antenna Gain: 23 dBi

Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)

Protection: 15 KV ESD Protection, 6 KV Lightning Protection

Enclosure: Material: Outdoor PC stabilized plastic, Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards: IEEE 802.11a/n/ac

Wireless Speeds: Up to 867 Mbps (80 MHz, Dynamic), Up to 400 Mbps (40 MHz, Dynamic), Up to 173.4 Mbps (20 MHz, Dynamic)

Frequency: 5.15–5.85 GHz

Transmit Power: Max. 27 dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

Network Configuration: WAN: Static/ Dynamic/ PPPoE, LAN: Static/ Dynamic/ DHCP, Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger, Security: SPI Firewall/ Ping Forbidden/ DoS Protection, Access Control, Static Routing, Bandwidth Control, IP & MAC Binding

Wireless Configurations: Selectable channel width: 20, 40 or 80MHz, Automatic Wi-Fi channel selection, RF transmit power adjustment in 1 dB step, Dynamic Frequency Selection (DFS), WDS Enable/ Disable, Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, SSID broadcast enable/ disable, Multi-SSID with VLAN tagging in AP mode, Distance/ ACK timeout setting, Wireless MAC address filter, Wireless advanced features:, Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia, Long range point-to-point

Management: Discovery and Remote Management with Pharos Control (Windows), HTTP/ HTTPS Web-based management, System log, SNMP agent (v2c), Ping watchdog, Dynamic DNS, SSH server

System Tools: Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage, Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP, Spectrum Analyzer, Speed Test, Ping, Traceroute, Antenna Alignment

System-level Optimizations: Optimized IGMP Snooping / Proxy for multicast applications

POE ADAPTER FEATURES

Dimensions(W x D x H): 3.3 x 1.7 x 1.2 in, (85 x 44 x 30 mm)

Interfaces: 1 AC Jack with Earth Ground, 1x 10/100/1000 Mbps Shielded Ethernet Port (Power + Data), 1x 10/100/1000 Mbps Shielded Ethernet Port (Data)

Button:Remote Reset Button

Power Status LEDs: Green

Input: 100-240VAC, 50/60Hz

Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency: > 84.29%

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

Certification: CE, FCC, RoHS, IP65

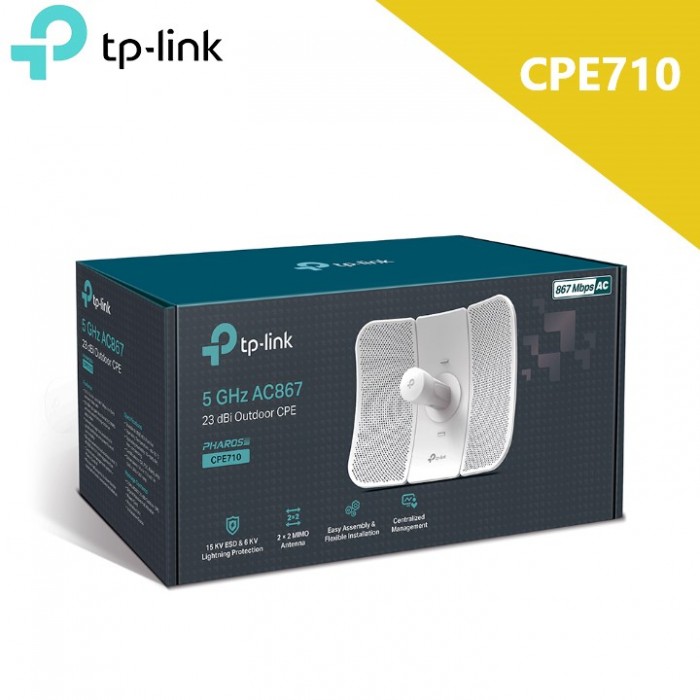

Package Contents: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Kits, AC Power Cord, Installation Guide

Environment: Operating Temperature: -40C~70C (-40F~158F), Storage Temperature: -40C~70C (-40F~158F), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~95% non-condensing

Gtin Number: 6935364053345

Download TP-LINK CPE710 Datasheet

General
Manufacturer	Tp-Link
Model	TP-LINK CPE710
Manufacturer Part No	CPE710
UPC	693536405334
EAN Code	6935364053345
Compatible Country	Middle East, Africa, Iran
Product HS Code	85176990
Country of Origin	China
Price	AED 242
