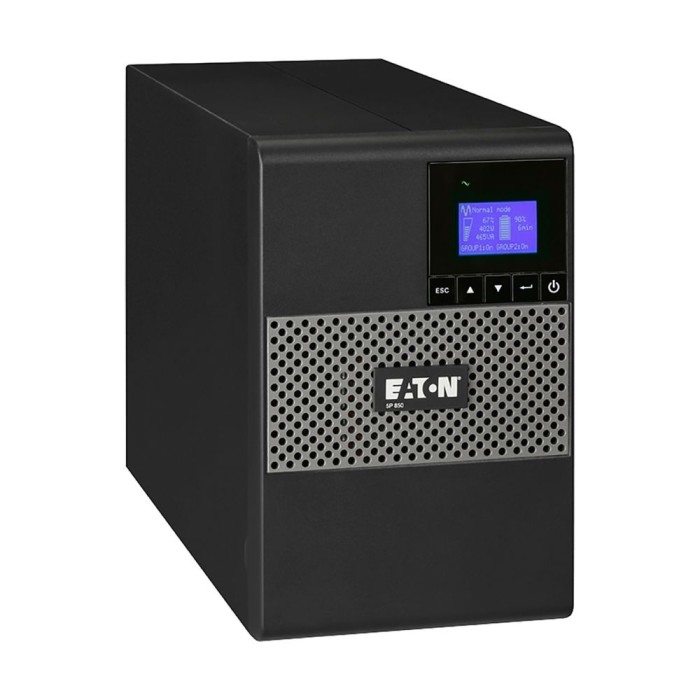

Eaton 5P1550I 5P 1550i Tower UPS 230V
-
- Brand Store: EATON
- Model: Eaton 5P1550I
- Availability: In Stock
- Part No: 5P1550I
About this item
Eaton 5P UPS, 1550 VA, 1100 W, Input: C14, Outputs: (8) C13, Tower
EATON Eaton 5P1550I
GENERAL SPECIFICATIONS
PRODUCT NAME Eaton 5P UPS
CATALOG NUMBER 5P1550I
UPC 743172042859
PRODUCT LENGTH/DEPTH 445 mm
PRODUCT HEIGHT 230 mm
PRODUCT WIDTH 150 mm
PRODUCT WEIGHT 15.6 kg
WARRANTY 3 year on electronics, 3 year on batteries with registration
COMPLIANCES CE Marked
TUV
CERTIFICATIONS UL 1778
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
cTUVus
BATTERY
RUNTIME GRAPH View runtime graph
BATTERY TYPE Lead-acid maintenance-free (replaceable)
BATTERY REPLACEMENT User replaceable
BATTERY QUANTITY 3
BATTERY MANAGEMENT ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
BATTERY RATING 12 V / 9 Ah
EXTENDED BATTERY CAPABILITYNo
ELECTRICAL OUTPUT
VOLTAGE 230V

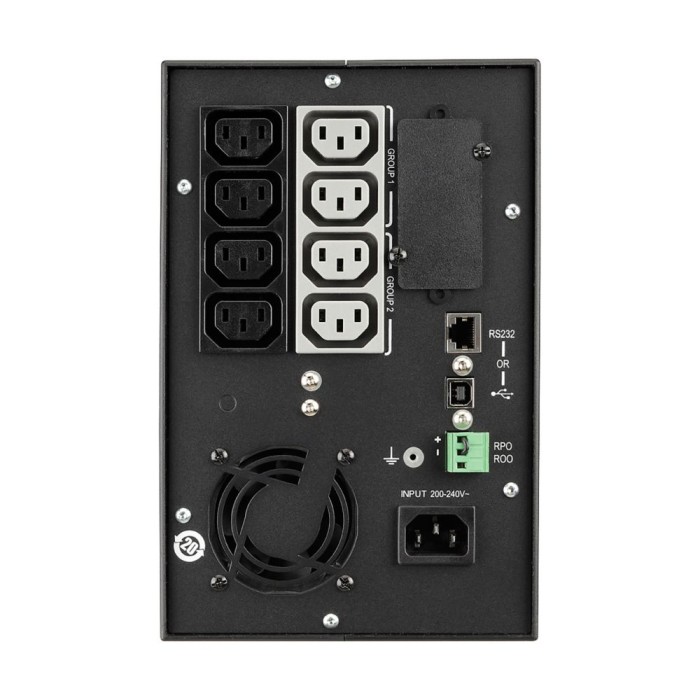

RECEPTACLE (8) C13
WATTAGE 1100 W
OUTPUT VOLTAGE RANGE 230 V (+6%/-10%)
OUTPUT FREQUENCY 50/60 Hz
OUTPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V)
TOPOLOGY Line-interactive
ELECTRICAL INPUT
INPUT CONNECTION C14
INPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V)
NOMINAL FREQUENCY 50-60 Hz
INPUT VOLTAGE RANGE 160-294 V (adjustable to 150 V-294 V)
INPUT FREQUENCY RANGE 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in
COMMUNICATIONS
COMMUNICATION USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Dry contacts (2 outputs, optocoupler, RJ)
ETHERNET INTERFACE No
FREE SWITCH CONTACT Yes
EXPANSION SLOTS One slot for optional communication card
SOFTWARE COMPATIBILITY Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE Other
ENVIRONMENTAL
ALTITUDE 2000 m
NOISE LEVEL <40 dB at 1 meter
TEMPERATURE RANGE 0-90% non-condensing
BTU RATING Online: 225
RELATIVE HUMIDITY 0-90% non-condensing
ADDITIONAL SPECIFICATIONS
FORM FACTOR Tower
CONSTRUCTION TYPE Free standing model
ENCLOSURE Black/silver
PACKAGE CONTENTS USB cable
Serial cable (2) IEC-IEC cables
Quickstart guide Safety instructions
PHASE (OUTPUT) 1
AUTO SHUTDOWN FUNCTION Yes
COLOR Black/silver
RACK MOUNTING KIT No
EFFICIENCY 97
PHASE (INPUT) 1
| General | |
| Manufacturer | EATON |
|---|---|
| Model | Eaton 5P1550I |
| Manufacturer Part No | 5P1550I |
| Price | AED 1,733 |
