General
Manufacturer EATON
Model Eaton 5PX2200IRT3UG2
Manufacturer Part No 5PX2200IRT3UG2
Price AED 2,993

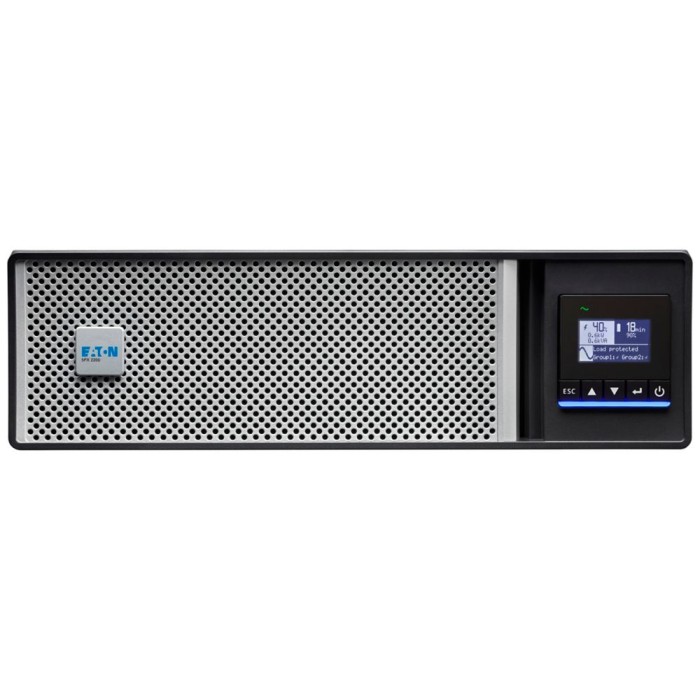

Eaton 5PX2200IRT3UG2 5PX 2200I RT3U G2 UPS


Eaton 5PX Gen2 UPS, 2200 VA, 2200 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U
  • AED 2,993

  • Inclusive of VAT
  • or 4 payments of AED 748.25 No interest, no fees. Learn more
  •   *Get it in 1-3 hours   terrabyt-express

Available Options

Are you wholesaler or reseller?

QuantityPrice
10+AED 100
25+AED 100
50+AED 100
  • Fulfilled by Terrabyt
  •  Condition: New
  •    Deliver To UAE
    Free Delivery Tomorrow, Oct 08
    If you order within 5 Hours, 37 Minutes

Eaton 5PX2200IRT3UG2 Buy with Best Price from authorized supplier for EATONproducts in UAE Eaton 5PX2200IRT3UG2 5PX 2200I RT3U G2 UPS Distributor for Africa Terrabyt.com, EATON Dubai

GENERAL SPECIFICATIONS
PRODUCT NAME Eaton 5PX Gen2 UPS
CATALOG NUMBER 5PX2200IRT3UG2
UPC 743172104762
PRODUCT LENGTH/DEPTH 483 mm
PRODUCT HEIGHT 129 mm
PRODUCT WIDTH 438 mm
PRODUCT WEIGHT 27.5 kg
WARRANTY 3 year on electronics, 2 year on battery
COMPLIANCES IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
RoHS Compliant
REACH
UL 1778
CSA 22.2
CERTIFICATIONS CE
cTUVus
EAC
Cm
UKCA
Ukr
ENERGY STAR certified
MODEL CODE Eaton 5PX 2200i RT3U G2

BATTERY
BATTERY TYPE Lead-acid maintenance-free (replaceable)
RUNTIME GRAPH View runtime graph
BATTERY REPLACEMENT User replaceable
BATTERY QUANTITY 6
BATTERY MANAGEMENT ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
BATTERY RATING 12 V / 7 Ah
EXTENDED BATTERY CAPABILITY Yes

ELECTRICAL OUTPUT

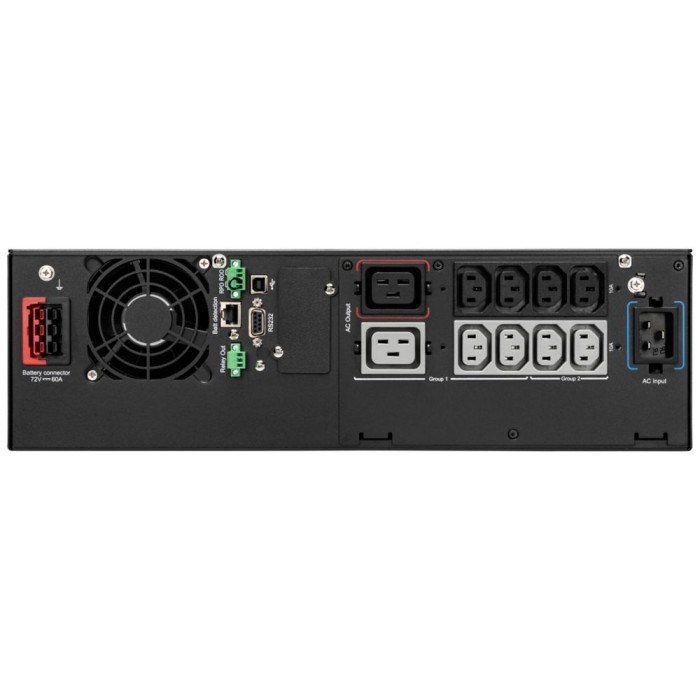

RECEPTACLE (8) C13, (2) C19
VOLTAGE 230V
WATTAGE 2200 W
OUTPUT POWER FACTOR 1
OUTPUT VOLTAGE RANGE 230 V (+6%/-10%)
OUTPUT WAVEFORM Sine wave
OUTPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V)
(LINEAR LOAD) - MAX 0
FEED TYPE 1
TOPOLOGY Line-interactive
VA RATING 2200 VA

ELECTRICAL INPUT
INPUT CONNECTION C20
INPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240V)
NOMINAL FREQUENCY 50-60 Hz
INPUT CORD LENGTH 1.8m
INPUT VOLTAGE RANGE 160-294 V (adjustable to 150 V-294 V)
INPUT FREQUENCY RANGE 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

COMMUNICATIONS
INCLUDES NETWORK CARD No
COMMUNICATION USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote On/Off and Remote Power Off
Mini-terminal block for output relay
Dry contacts (3 outputs, 1 input, optocoupler, DB9)
USER INTERFACE Multilingual graphical LCD display
POTENTIAL FREE SWITCH CONTACT Yes
EXPANSION SLOTS One slot for optional communication card
SOFTWARE COMPATIBILITY Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE Other

ENVIRONMENTAL
ALTITUDE 3000 m
NOISE LEVEL <40 dB at 1 meter
TEMPERATURE RANGE 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
RELATIVE HUMIDITY 0-90% non-condensing

ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE 482.6 mm (19 inch) device
PACKAGE CONTENTS Input cable
Rack-mounting kit
(2) Supports for tower mounting
Cable locking system
USB cable
Serial cable
(2) IEC-IEC cables
Quickstart guide
Safety instructions
PHASE (OUTPUT) 1
AUTO SHUTDOWN FUNCTION Yes
COLOR Black/silver
EFFICIENCY 98
RACK MOUNTING KIT Yes
PHASE (INPUT) 1
