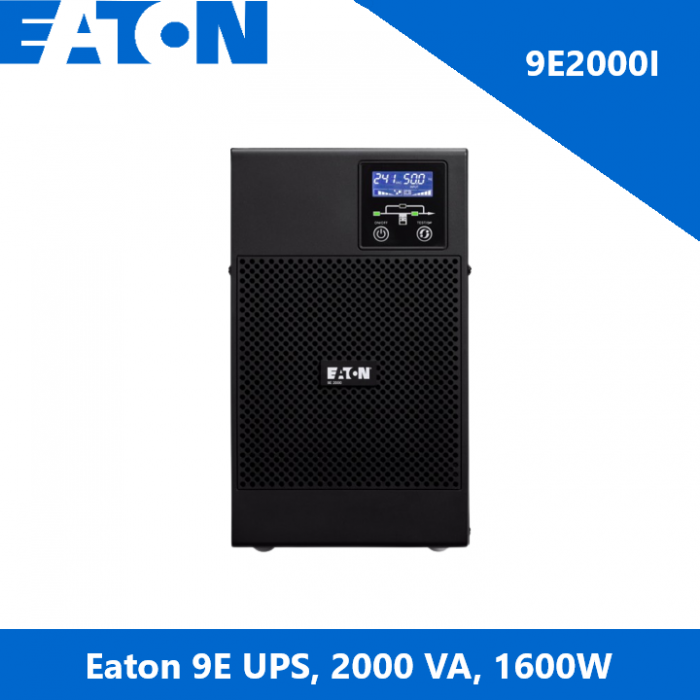

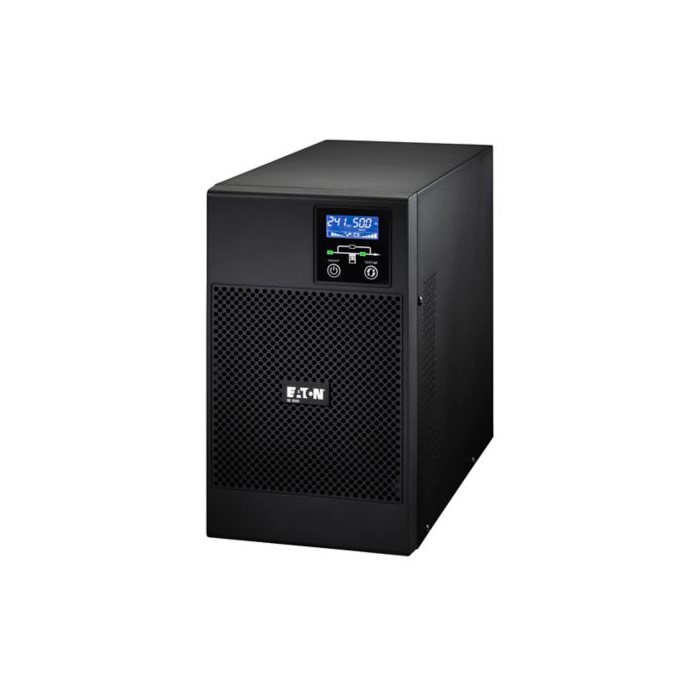

Eaton 9E2000I 9E UPS, 2000 VA, 1600W, Input: C14, Output: (6) C13, Tower
-
- Brand Store: EATON
- Model: Eaton 9E2000I
- Availability: In Stock
- Part No: 9E2000I
Key features
Eaton 9E2000I 9E UPS, 2000 VA, 1600W, Input: C14, Output: (6) C13, Tower
Compatible
- EBM: 9EEBM72
- Options: Network-M2, ModBus-MS or Relay-MS cards

EATON Eaton 9E2000I
Eaton 9E UPS – Model 9E2000I | |
---|---|
General Information | |
Product Name | Eaton 9E UPS |
Catalog Number | 9E2000I |
Color | Black |
Physical Dimensions | |
Length / Depth | 399 mm |
Height | 330 mm |
Width | 190 mm |
Construction Type | Free standing model |
Rack Mounting Kit | No |
Battery | |
Type | Sealed, lead-acid |
Quantity | 6 |
Battery Rating | 12 V / 7 Ah |
Battery Management | Automatic battery test, Deep discharge protection |
Battery Replacement | Replaceable batteries |
Extended Battery Capability | Yes |
Electrical Output | |
Receptacles | 6 x C13 |
Output Power | 1600W |
VA Rating | 2000 VA |
Output Voltage Range | 220/230/240 V + 2% |
Nominal Output Voltage | 230V (Default: 220/230/240V) |
Output Waveform | Sine Wave |
Output Power Factor | 0.8 |
Voltage Distortion (Linear Load) | < 3% |
Phase (Output) | 1 |
Internal Bypass | Yes |
Auto Shutdown | Yes |
Topology | Online / Double-conversion |
Efficiency at Max Load | 91% |
Electrical Input | |
Input Connection | C14 |
Nominal Voltage | 230V (Default: 220/230/240V) |
Input Voltage Range | 176–300 V (100–300 V with derating) |
Input Frequency | 40–70 Hz |
Nominal Frequency | 50/60 Hz |
Input Power Factor | > 0.99 |
Phase (Input) | 1 |
Hot Swap Power | No |
Communications | |
Network Card | No |
Communication Ports | USB (HID compliant), Serial (RS232) |
Ethernet Interface | No |
Communication Slot | One slot for optional communication card |
User Interface | LCD Display |
Potential Free Switch Contact | No |
Software Compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
Interface Type | Other |
Environmental | |
Altitude | Up to 3000 m |
Noise Level | < 37 dB at 1 meter |
Operating Temperature | 0C to 40C (32F to 104F) |
Relative Humidity | 0–95% (non-condensing) |
Compliance & Certifications | |
Compliances | CE Marked, TUV |
Certifications | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC |
Package Contents | |
- UPS - USB Cable - Serial Cable - Quickstart Guide - Safety Instructions |
Download Eaton 9E2000I Datasheet

General | |
Manufacturer | EATON |
---|---|
Model | Eaton 9E2000I |
Manufacturer Part No | 9E2000I |
EAN Code | 786689166571 |
Compatible Country | Middle East, Africe, Iran, Dubai |
Price | AED 2,468 |
